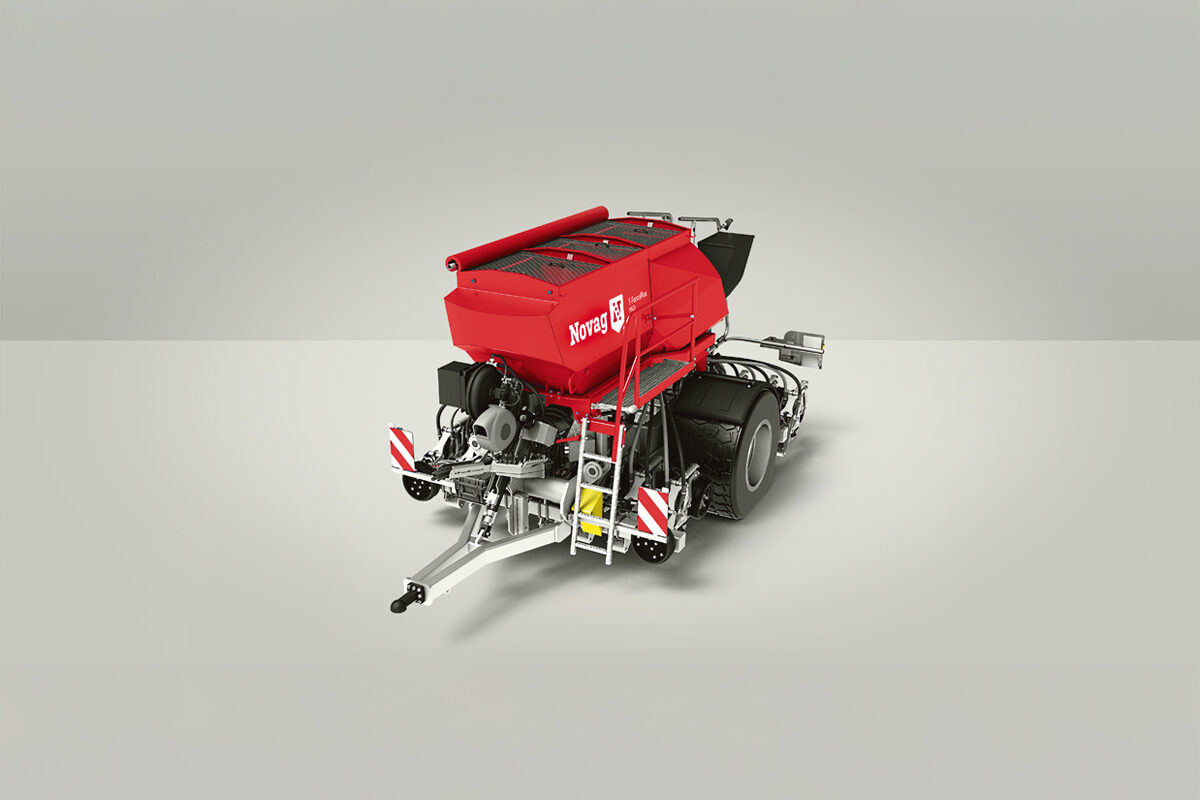

T-ForcePlus 350 (backup)

Lorem Ipsum

The tool for professionals

The T-ForcePlus 350 is a solid and compact no-till drill that offers a wide range of row spacings and useful features. Thanks to its advantageous
working width of 3 m, the T-ForcePlus 350 with IntelliForcePlus system is one of the most widely used precision no-till drills on the market. Lighter than its larger counterparts and thanks to its wide transport tires, this model is an excellent choice when it comes to avoiding any kind of compaction in the field.

The 3 m wide frame does not require a folding mechanism. This makes this model quickly ready for use, especially in view of the excellent results.

Details T-ForcePlus 350 (backup)

3 m

Working width

16.67 \ 18.75 \ 25 cm

Row spacing

> 120 HP

Tractor power

4.200 l

Volume main hopper

All technical details are also available as a PDF

T-SlotPlus: The key to successful no-till

The T-SlotPlus system from Novag ensures optimum seed placement and therefore reliable yields, even in difficult no-till conditions. The special T-slot shape is created by a vertical disc and two T-shaped angled seed shoes, which place the seed and fertilizer separately to the side.

Advantages of the T-slot:

Minimal soil disturbance protects against dehydration and reduces weeds.

The Slot is easy to close and keeps moisture on the seed.
Precise placement with optimum distance between seed and fertilizer.
Reliable sowing without Hairpinning – even with stubble or catch crops.

A lot of pressure, but intelligent

Soil resistance can vary greatly – due to compaction, stones or different soil types, even within the same field. This is a challenge for a uniform sowing depth, especially with no-till: hard soil requires more coulter pressure, light soil less to avoid over-compaction and over-deep placement.

The IntelliForcePlus system from Novag reacts automatically to such differences. Sensors on the Press wheels detect the actual resistance. The pressure on each opener is adjusted individually and continuously via hydraulic cylinders – with up to 500 kg pressure and 430 mm vertical lift.

The electronics also automatically set the necessary pressure for slot closure from the cab. This ensures a constant sowing depth with optimum seed-to-soil contact at all times – regardless of changing soil conditions.

Weight can be added to a Novag T-ForcePlus 950

0 kg

Flexible containers for maximum versatility

The large hopper of the Novag machines is divided and reliably separates seed and fertilizer. The contents can be distributed flexibly over any number of rows, and the chamber layout is adjustable. Two optional Auxiliary bins at the rear allow the application of fine seeds, slug pellets or special fertilizers and up to four different products can be applied simultaneously – e.g. two crops, fertilizer and slug pellets. All hoppers are precisely controlled by a hydraulic system. This provides constant performance, even at low speeds – without overheating or loss of torque. Ideal for mixtures with different quantities and seed sizes. The electronic calibration process is quick and easy – just as modern no-till technology demands.

Container with inner values

Large container with adjustable partition wall for two separate chambers
Chambers can be used flexibly for seeds and/or fertilizer
Products from both chambers are transported separately to each seed coulter
Separate metering and application of seed and fertilizer
Fertilizer is placed 2-3 cm away from the seed thanks to optimal placement with T-shape
Disc separates seed and fertilizer when spreading in the T-slot
Up to two optional Auxiliary bins can be added.
Auxiliary bins for fine seeds, slug pellets, micro granules, etc.
Connection to pneumatic main circuit for efficient distribution of additives

Auxiliary bin

One to two additional containers for the application of four products
Controllable from the monitor
Equipped with a hydraulic dosing unit with a wide range, capacitive sensors and individual calibration

Pseudo-singulation kit

Conservation agriculture possible
Ideal tool for establishing your row crops on your no-till fields
Sowing of plants such as maize at 50 cm or 75 cm, with row-by-row seed selection, directly from the Novag auxiliary metering units
Spring crop yield increases thanks to exceptional seed microenvironment, depth control and fertilizer placement
Configure your Novag T-Force with our pseudo-singulation kit:

Seed monitoring system

Provides reliable safety and accuracy in seed and fertilizer quantities

T-SlotPlus: The key to successful no-till

Advantages of the T-slot:

Minimal soil disturbance protects against dehydration and reduces weeds.

The Slot is easy to close and keeps moisture on the seed.
Precise placement with optimum distance between seed and fertilizer.
Reliable sowing without Hairpinning – even with stubble or catch crops.

Specifications

Attachment

Tow eye or Ball coupling
Hydraulically adjustable drawbar

Tanks

Capacitive sensor on each container

Metering units

Pneumatic distribution
Hydraulic drive with variable application rate control

Electronics

IntelliforcePlus System
7″ monitor and intuitive joystick

Axle and tires

Hydraulic or pneumatic brakes
Large-volume radial tires for microbe protection

Hydraulics

Load sensing and other control units
Oil cooler, air heater

Dimensions

Compact and maneuverable design
Transport width 3 m

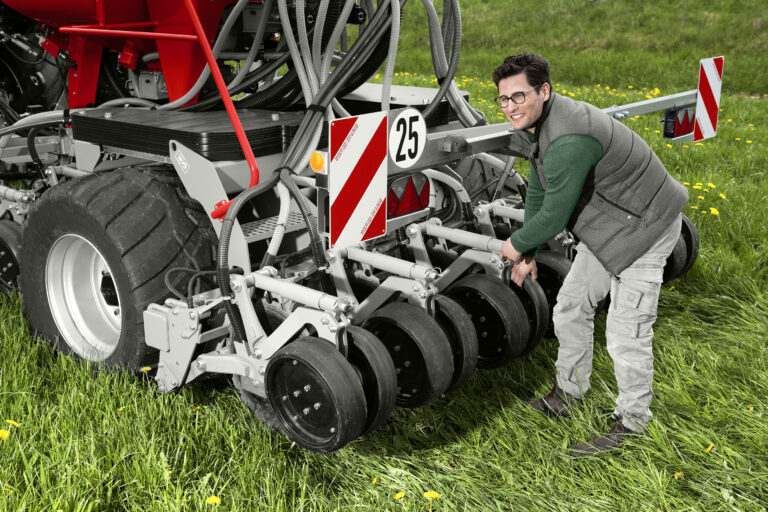

Openers

Pressure applied by a hydraulic cylinder on each opener from 100 to 500 kg
Hardened cutting discs and sowing shoes

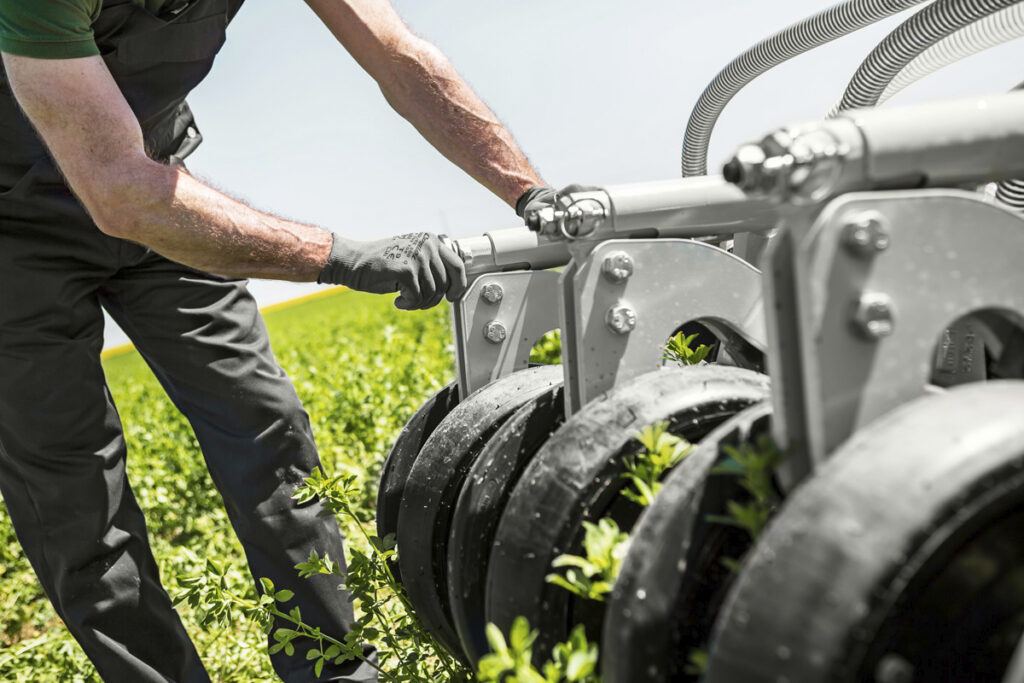

Two V-shaped Press wheels,
equipped with soft tires
Adjustable Seeding depth in the range of 0 – 10 cm

Hopper with intrinsic value

The large, red main tank has a partition wall, which is divided into a front and a rear area. These two hoppers can be used for seed or fertilizer. Products from each of the two hoppers are transported separately to each opener – both to the front and rear openers. Fertilizer and seed can therefore be applied separately. Each component is placed in the soil with its own Seed blade on the respective side of the central cutting disc of the opener.

Up to two optional 120L hoppers can be fitted for additional options. They can dose into the air flow of the main tanks and are designed for fine seeds, slug pellets or micro-granules.

T-ForcePlus	350
Dimensions
Working width	3 m
Transport width	3 m
Length incl. drawbar	6.5 m
Transport height	2.9 m
Unladen weight	6.5 t
Optional additional weight	opt. 750kg - 1,500 kg
max. Total weight	12 t
Openers
Row spacing	16.67 \ 18.75 \ 25
Number of openers	max. 18
recommended power	> 120 HP
Coulter pressure	Is adjusted on each coulter by a hydraulic cylinder, from 100 to 500 kg
Cutting disks	Hardened notched disks 575 × 5 mm or 520 × 5 mm
Seed coulters	In pairs, cast iron NiHard optionally with carbide
Press wheels	2 V-shaped Press wheels; semi-pneumatic 410 × 75 mm or 400 × 115 mm
Sowing depth	Fully adjustable in a range of 1 - 8 cm
Attachment
Coupling	Towing eye, K80 Ball coupling or optional lower link hitch
Drawbar	Hydraulically adjustable drawbar
Metering units
Type	Pneumatic system
Drive	Hydraulic drive with variable flow control
Seed and fertilizer hoppers
Main double tank	4.200 l
Adjustable partition wall	2,300 l \ 1,900 l or 1,400 l \ 2,800 l
Additional container	Optional, up to 2 × 120 l
Empty sensor	2 capacitive sensors per hopper
Spreader heads front\rear	Optional, 2
IntelliRowPLUS	Optional, 37.5 \ 50 \ 75 cm
Electronics
auto. Coulter pressure control	auto. Seed depth control, IntelliForcePlus system
Monitor and VRA	Optional: ISOBUS control or 7" monitor
Seed coulter control	DW control unit or joystick
Seed flow monitoring	Optional, fully integrated in the monitor
Axle
Track gauge	2,200 mm
Brake	pneumatic
Standard tires \ Caterpillar	up to 710 \ 50 R26.5
Hydraulics
Connections	LS system + min. 2 control units + Free return
Oil cooler \ Air heater	1
Hydraulic power requirement	> 60 l / min
